i configure the routers2.cgi
but i can't see the interface discription in summary report

pl tell us

With Regards

Not sure what you mean; the Summary page will have the Title added by each graph.

If you mean the PageTop tex block then that is never normally shown in the summary page. You can add the 'withpagetop' option to the summaary page though: routers.cgi*Options[__summary]:withpagetop but that can make things very messy.

If you mean the SNMP description as put into the commeans and PageTop by cfgmaker, then you need to use Routers2 symbol replacement; the cfgmaker SNMP description is %CMDESC%. So, you could put this into the PageTop or PageFoot somewhere. However it cannot be used in the Title or ShortDesc.

The best way to make the SNMP description appear in the Title or ShortDesc is to write your own interface template (or host template) for cfgmaker, so that it generates the Title and/or ShortDesc the way you want. See the cfgmaker forum here for some examples.

_________________
Steve Shipway
UNIX Systems, ITSS, University of Auckland, NZ
Woe unto them that rise up early in the morning... -- Isaiah 5:11

This information Shown in Summary page
================================
ASR-9Krouter

Target: 164.100.193.4_18 Traffic Analysis for 18 -- INTERNET_GATEWAY_ASR9K.nic.in
Last update: Wed Feb 22 12:53:00 2012
Bandwidth: 953.67 Mbps
Interface IP: 10.1.250.41
Interface # 18
In: Max 454.56 Mbps, Avg 191.14 Mbps, Last 426.69 Mbps
Out: Max 42.41 Mbps, Avg 15.57 Mbps, Last 41.22 Mbps

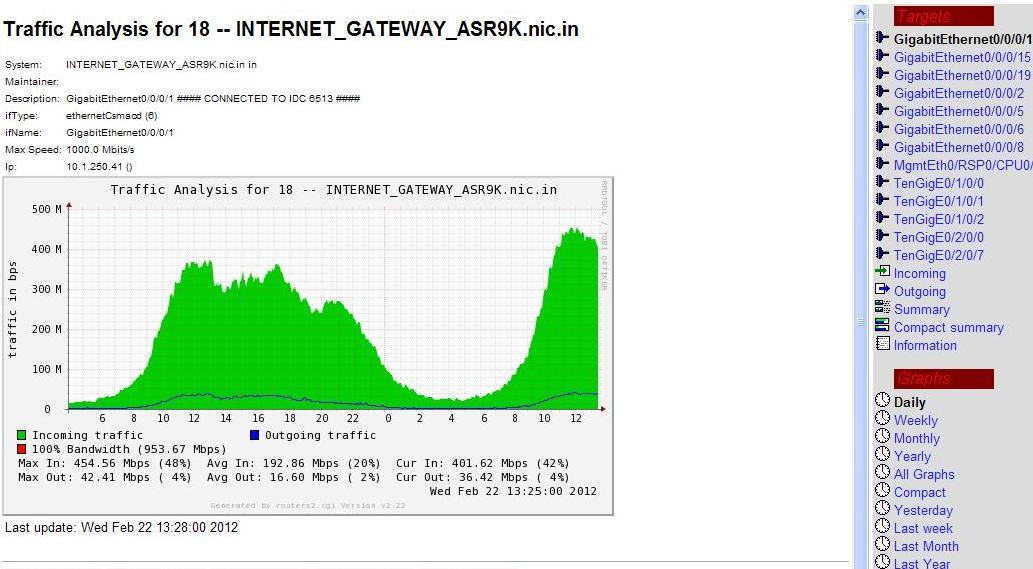

This information shown for single interface
==================================
Traffic Analysis for 18 -- INTERNET_GATEWAY_ASR9K.nic.in
System: INTERNET_GATEWAY_ASR9K.nic.in in
Maintainer:
Description: GigabitEthernet0/0/0/1 #### CONNECTED TO IDC 6513 ####
ifType: ethernetCsmacd (6)
ifName: GigabitEthernet0/0/0/1
Max Speed: 1000.0 Mbits/s
Ip: 10.1.250.41 ()


I want this interface discription on summary page



With Regards
Balbir Singh

Dear Sir,

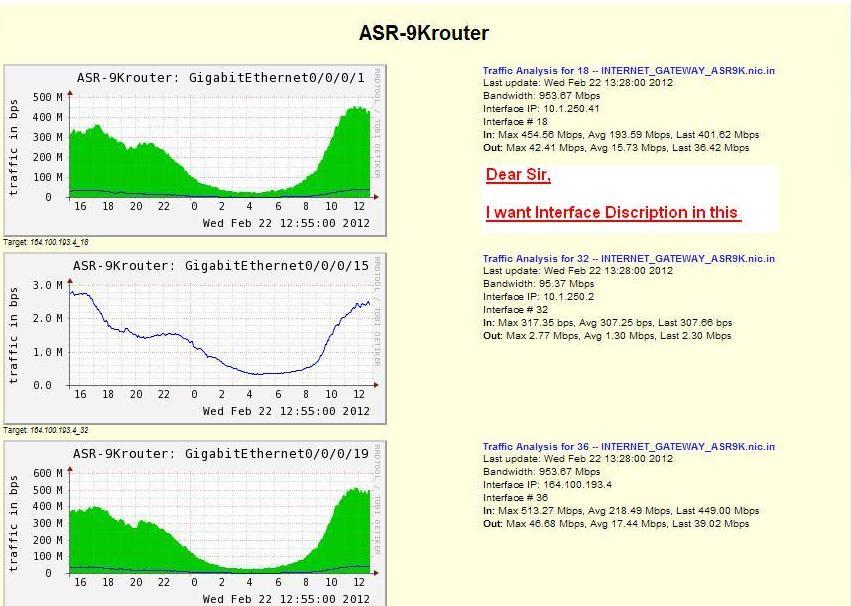

Attached the image file


With Regards
Balbir Singh

_________________
Steve Shipway
UNIX Systems, ITSS, University of Auckland, NZ
Woe unto them that rise up early in the morning... -- Isaiah 5:11

Dear Sir,

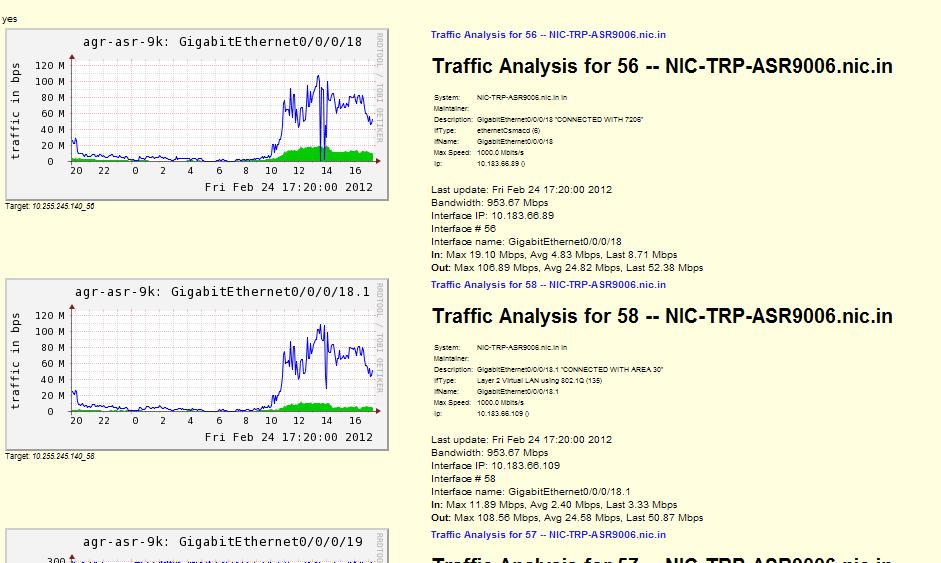

After implementation changes advised by you I got full information in summary page,
I want only description should be displayed on the header of the body

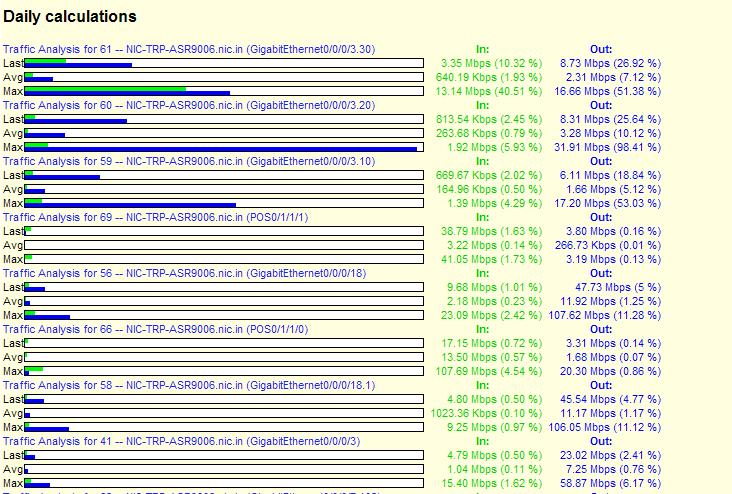

attached the image for compact summary, information page i want interface discription as a hyperlink


With Regards
Balbir

On the Information and Compat pages, the links are always the 'long' descirption (IE, what is in the Title[] definition for the Target). On the Summary and Graph pages, the PageTop can be displayed.

So, if you want this to only show the SNMP Description, then you will need to set the appropriate values in the Title[] and PageTop[] definitions in your MRTG .cfg files.

If you are using cfgmaker to generate these files, then you can use an interface template or host template to modify the default output format. This does require some Perl coding ability, though. There are cfgmaker templates available for example in the cfgmaker forum on this site.

_________________
Steve Shipway
UNIX Systems, ITSS, University of Auckland, NZ
Woe unto them that rise up early in the morning... -- Isaiah 5:11
